ELINSUBCA, has executed projects across the spectrum of professional engineering services and coastal marine construction, ranging from basic studies and conceptual engineering to operation and maintenance, including engineering, procurement, construction, integral managers of the project and specialized technical assistance.

• Subsea Piping Systems HDPE
• Ground Piping Systems and Industrial HDPE
• Specialized Advisory Facility Subsea Pipe HDPE.



ELINSUBCA is a company offering professional services of Engineering, Procurement and Construction, since 2002, we have focused on the design, construction and inspection of underwater pipelines high density polyethylene HDPE, aimed at facilities Emissaries, Captaciones and Aqueducts.

Outfall.

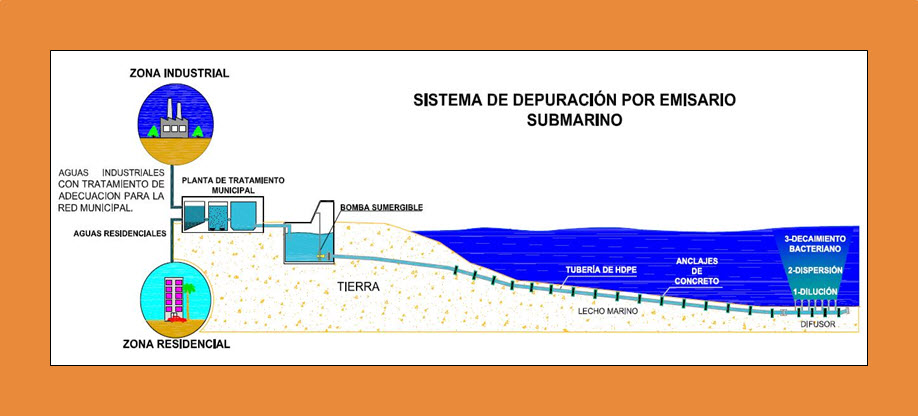

This system works using natural purification capacity of the oceans through three physical and biological mechanisms: dilution, dispersion and bacterial decay.… Read more …

Take Undersea.

The water intake systems built in high density polyethylene (HDPE) are intended to capture water from a natural source such as seas, lakes or rivers. Read more…

Underwater aqueduct.

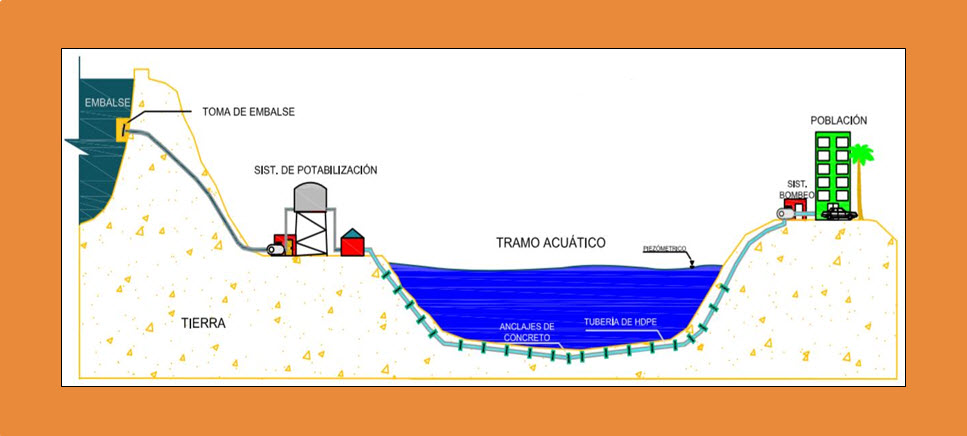

Aqueducts submarines are used to transport drinking water or raw water through seas, rivers or lakes, in order to serve populations that are isolated by these aquatic environments. Read more…

Long pipelines

ELINSUBCA, brings experience and knowledge in the installation of pipes Submarines High Density Polyethylene (HDPE) with the support of the prestigious Norwegian factory Pipelife, to supply pipes in Long mode Tranches in large diameters different projects be developed on the Atlantic coast of Latin American and Caribbean.

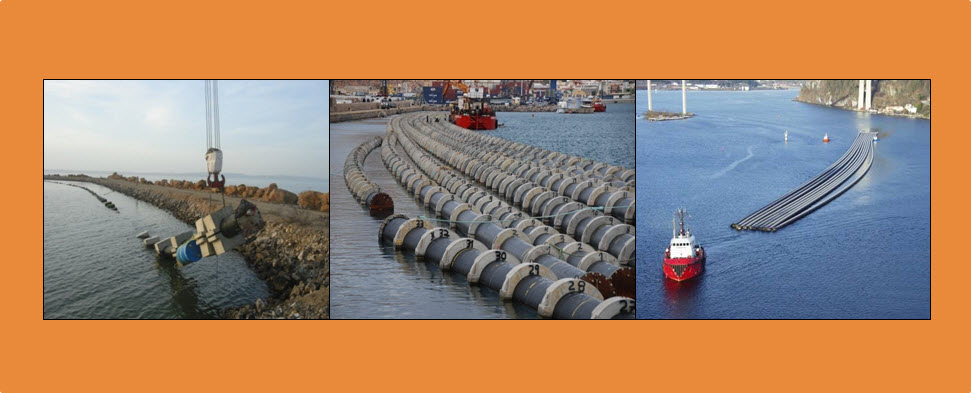

The manufacture of pipes, solid wall is made up of 2,500 mm diameter, through direct the ocean thanks to the strategic location of the plant Pipelife Norge AS at the seaside continuous extrusion. The pipe sections are prepared in lengths up to 550 m, sealing the ends with standing flanges to be towed and delivered to their final destination where they will be installed by the contractor.

The towing method is executed directly by the factory, to be effective and safe, with more than 50 years of experience running several large projects around the world. This system provides great advantages in reducing time and costs of implementing projects Emissaries, Tomas and Aqueducts Submarines.

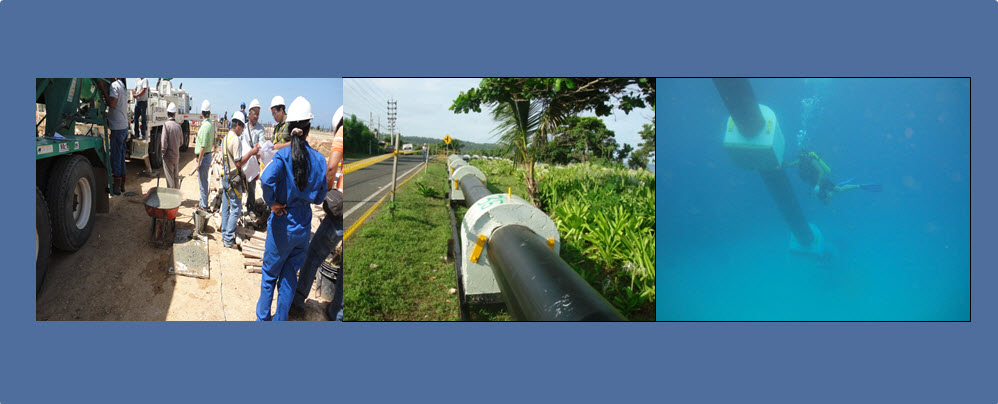

Scope of Services

The scope of services offered by ELINSUBCA includes the entire life cycle of a project visualization, conceptual design definition phase, implementation phase, implementation and commissioning. We can intervene at all stages of the project or particularly in the phase required by you.

Preliminary Evaluation

• Identification of customer needs and visualization of technical solutions.
• Pre-design of technical variables: length, diameter, depth, pumping, among others.
• Evaluation of the project constraints.
• Bathymetric survey.
• Land Survey of the transition zone land-water.
• Oceanographic studies: winds, currents, tides and waves.
• Survey and sampling the ocean floor.
• Environmental and sociocultural impact.

Route Selection

• Submarine to verify recognition site features, soil conditions, slope, location of obstacles, environmental restrictions, among others.
• Identification and selection of the most suitable route using technical-economic-environmental criteria.

Permitting

• Environmental involvement.
• Harbormaster.

Pipe Design

• Analysis and hydraulic design: Calculation of length, diameter and pumping requirement.
• Structural analysis and design: Calculation of thickness of pipe, concrete counterweights and burial.
• Calculation of dilution of the effluent to determine diffuser design and location of emissaries.
• Calculation of intake filter for water collection.
• Estimated cost of implementation..

Seeks

• Selection and evaluation of suppliers, request for quotations, procurement of goods and services required for execution.

Construction

• Execution of the construction processes adapted to the characteristics of the locality.

Management

• Application Process Project Management: Start, Planning, Implementation, Monitoring and Closing.

Inspection

• ◦Evaluación that is performed by qualified personnel in coastal marine works on the construction process of the work, in order to ensure that it is conducted in accordance with the plans, standards and specifications approved.

 Up

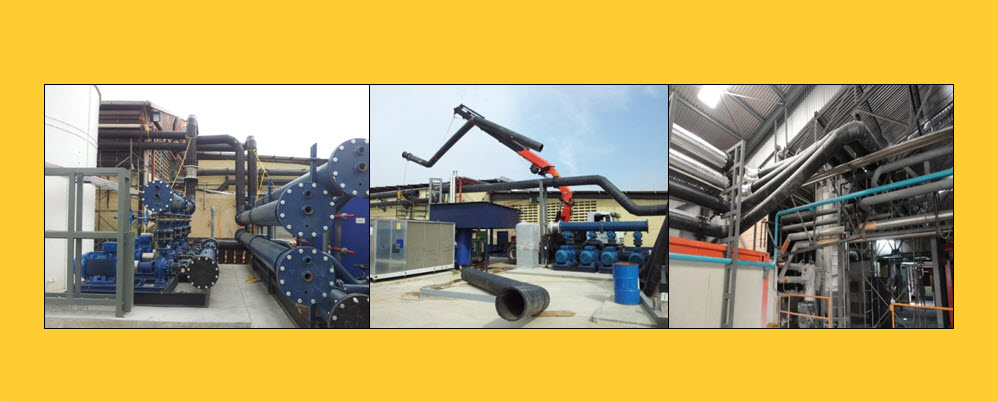

In the range of services offered ELINSUBCA, it is the engineering, procurement and installation of pipes for transporting liquids and accessories, valves and special components. To address the multiple operating conditions in industrial use, ELINSUBCA works with different pipe materials including found HDPE (High Density Polyethylene) and PP (polypropylene).

Materials HDPE (High Density Polyethylene) and PP (polypropylene) are especially important in this area. Its high resistance to chemicals, its wide range of high temperature applications and easy installation are just some of the main advantages of these plastic.

Within the specialty of ELINSUBCA in installing underwater pipelines and the installation of pipes for industrial systems, the large variety of different components that comprise it, allow selection of materials, plus a wide range of diameters and lengths through different techniques by thermal fusion welding such as butt fusion, socket or electrofusion, which are particularly suitable for construction of plants.

Industrial applications

The application fields to which we are dedicated encompasses a virtually unlimited range for the following installations:

• Petrochemical industry.
• Desalination systems.
• Water treatment systems.
• Mining industry.
• Thermal power stations.
• Irrigation systems.
• Process wáter.
• Cooling system.
• Fire Systems.
• Aquaculture farms.
• Aqueducts drinking wáter.
• Sewage wastewater networks.
• Among others.



In most industrial processes exist liquids and gases, cold and heat, increasing the field of application of these materials, ranging from water pipes cooling piping in plants, pressurized systems to transport media to pipes for elimination of contaminated waste water, waste gas and piping systems in the construction of equipment and containers.

The experience has been obtained in HDPE piping installation in cooling systems, at lower temperatures, offers advantages in heat conduction, reducing the condensation of the liquid and therefore energy losses. Comparisons have been established along with steel pipes in terms of thermal capacity and HDPE offers advantages, however, it is advisable to use insulation and “jackets” for decreasing heat losses.

Ir arriba

The success of a project Emissary, or Aqueduct Collection Underwater depend primarily on the construction methods should be designed according to geographical conditions, local resources and existing environmental regulations. Knowing in advance how the installation of the pipeline will take place both on land and at sea; his lying, release, transport, subsidence and positioning on the seabed, ensure efficient engineering design and successful execution in work under the parameters: Scope, Time, Cost, Quality, Resources, Risk, Procurement, Safety, Health and Health.



Constructive Design Methodology

ELINSUBCA you design your constructive methodology in the terrestrial and maritime part and evaluates the most suitable alternative implementation, mainly considering local resources and environmental regulations. Based on the extensive technical experience executing works of submarine pipelines in High Density Polyethylene (HDPE) designed the construction methods under criteria: Scope, Time, Cost, Quality, Resources, Risk, Procurement, Safety, Hygiene and Health We can intervene in all stages of the project or particularly required in order to define the most appropriate solution from the environmental point of economic, technical and stage designs cONSTRUCTIVE METHODOLOGY ELINSUBCA appropriate considering the following aspects :

Interventions:

• Identification of oceanographic studies necessary.
• Scope of Environmental Studies and Social and Cultural Impact.
• Permitting Environmental Management Involvement and harbormaster.
• Hydraulic and technical designs.
• Installation of pipe trench, laying directly on the seabed or buried.
• Anchor type for tubing and manufacturing methodology.
• Assembly and installation of the pipe, determining amount and length of sections.
• Method Solder, connections and other accessories.
• Arrangement of anchors or counterweights on the pipe, number and separation.
• Support vessels to transfer work and sinking.
• Design of the launch structure of the pipe.
• Demarcation of the final route and validation of previous studies.
• Maritime Moving the pipe.
• Sinking controlled pipe.
• Installation method takes diffuser or in relation to its length and depth.
• Commissioning of the system.
